UVi Aire Ozone Generator 50G

QUICK OVERVIEW

UVi Aire ozone generator 50G rated for 2200 L/S

Designed to produce the ozone with an electrical current via corona plates the final process when injected into the ductwork oxidises the cooking odour and fine oil mists.

VARIBALE OUTPUT CONTROL

Auto controlled ozone output production.

if ozone is excessive it can be adjusted to suit cooking intensity.

STAINLESS STEEL CONSTRUCTION

Ozone generator is constructed from stainless steel for ozone, heat, weatherproof resistance.

INTEGRATED DUST FILTER

Washable dust filter located inside the ozone unit to collect and particulate off the corona plates making the ozone generator more efficient to produce stable ozone levels.

COOLING FAN

Located on the side of the ozone unit cooling fan cools down components and bring fresh air inside the unit and reduce temperatures.

PVC PIPE CONNECTION

Easily connected via PVC pipe to the ducted for ozone injection.

OPTIONAL TIMER

Allows you to control the air purification time

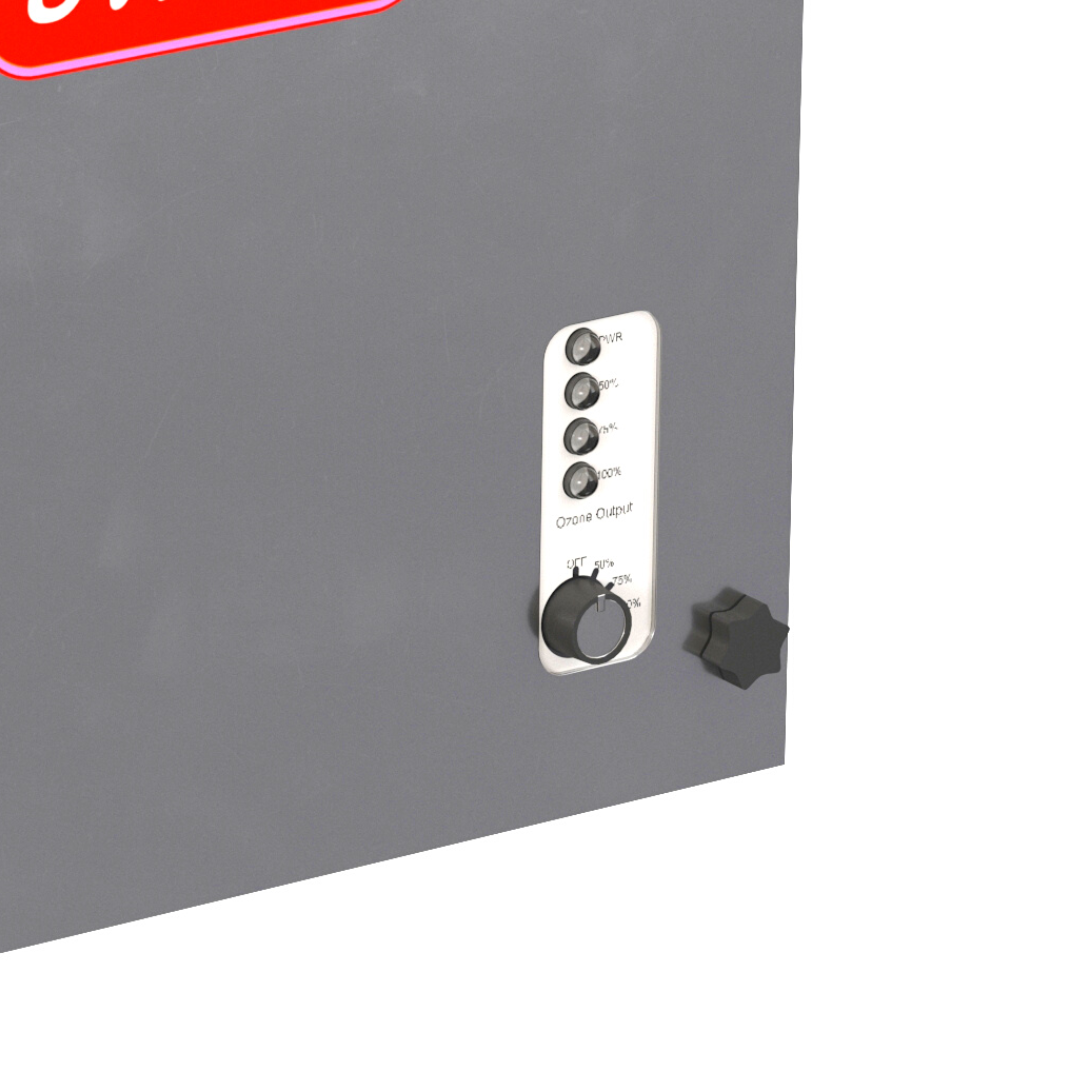

LED INDICTORS

Power of the ozone generator is located at the face of the unit as well as the output level of ozone production

BENEFITS OF OZONE IN THE KITCHEN EXHAUST SYSTEM

Reduces grease and cooking odours inside the ductwork and saves costs of ductwork cleaning and fire risk risk is reduced.

2 - 3 SECOND CONTACT TIME IS REQUIRED

Ozone when injected into the kitchen exhaust ductwork requires 2 – 3 second contact time for the ozone to mix with the odours.

UVi Aire Ozone Generator SPEC

Model: Uvi Aire OG – 50

Dimensions: 550 mm wide x 420 mm high x 270 mm deep

Ozone Output: 50 grams per hour

Weight: 18 kg

Airflow : 2200 L/s

PVC pipe connection: 90 mm diameter connection

Power: 240 Volts ( 1PH) 3pin cord 1 metre long plug and play

Amps: 2.80 Amps

Options: Interlocking control / Airflow activation switch

Contact Time: 2 – 3 seconds required

Variable Output Control: Yes (Manual switch)

Application: Odour control
